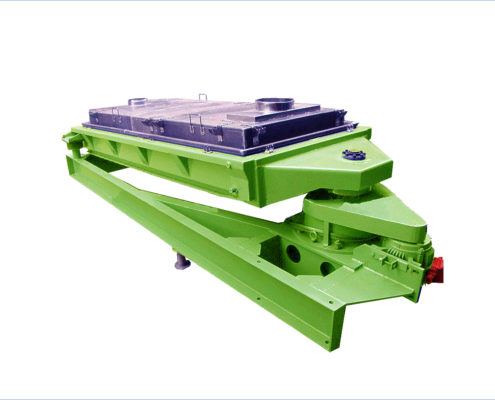

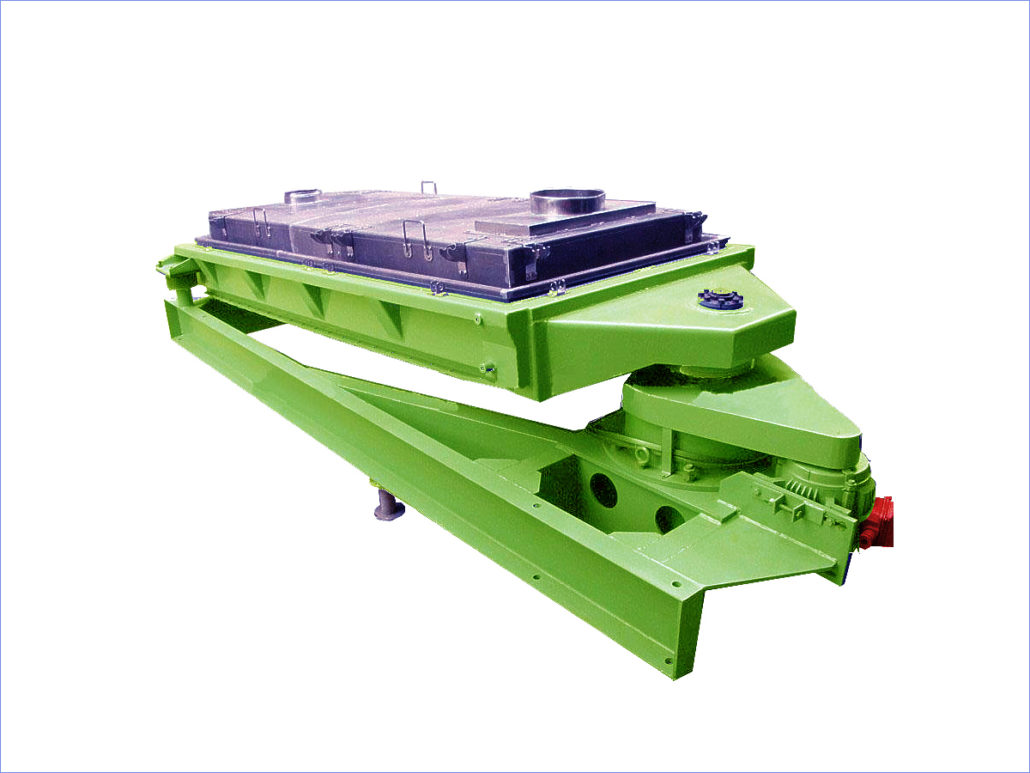

MH plane rotary screen, also known as the plane vibrating screen, the mega screening technology department lasted for a year, focused on the research of plane vibrating screen, and opened up several new products in the single field of planar vibrating screen. To serve the different needs of customers at home and abroad.
[model]: MP-TD30
[supply cycle]: 40 working days
[technical parameters]: 4kw vibration motor, it can be screened under 5-400 mesh
Application: mainly used in grain (wheat, grain, corn) medicine, food industry
Contact us: 008603732698111 online message: material and screening requirements
Compared with other types of planar rotary screen, it has the advantage of fine screening, high efficiency and high productivity, and improves the high-end application of industry (chemical fine screening, food deep processing, screening buildings, etc.).
| MH型平面回转筛分机选型表 | |||||||||
| 层次 | 型号 | 回转频率 | 行程 | 处理量 | 电机功率 | 外形尺寸 | 设备质量 | ||
| r/min | mm | m3/h | kw | 长（L） | 宽(W) | 高(H) | kg | ||
| 1 | MH-A20 | 180~220 | 50 | 4~10 | 2.2 | 3520 | 1150 | 1420 | 1430 |
| MH-B24 | 180~220 | 60 | 5~13 | 3 | 4150 | 1350 | 1420 | 1724 | |
| MH-C30 | 180~220 | 60 | 8~20 | 3 | 4480 | 1600 | 1433 | 1920 | |
|
MH-D42
|
180~220 | 88 | 10~25 | 4 | 5000 | 1810 | 1450 | 2160 | |
| MH-E48 | 180~220 | 88 | 17~4 | 5.5 | 6190 | 2130 | 1360 | 2900 | |
| 2 | M-HTC20 | 180~220 | 50 | 4~12 | 3 | 3620 | 1880 | 2100 | 2610 |
| MH-TD24 | 180~220 | 60 | 6~15 | 4 | 4114 | 2080 | 2100 | 3177 | |
| MH-TE30 | 180~220 | 88 | 8~18 | 4 | 4930 | 2370 | 2200 | 3494 | |
| MH-TE42 | 180~220 | 88 | 15~35 | 5.5 | 5612 | 2690 | 2200 | 4413 | |
| MH-TE48 | 180~220 |
88
|
18~44 | 7.5 | 6498 | 2940 | 2300 | 4756 | |
| 3 | MH-SC24 | 180~220 | 60 | 5~15 | 4 | 4414 | 2080 | 2200 | 3395 |
| MH-SC30 | 180~220 | 60 | 8~18 | 5.5 | 4930 | 2370 | 2200 | 3872 | |
| MH-SC42 | 180~220 | 88 | 15~32 | 7.5 | 5612 | 2690 | 2200 | 4786 | |
| MH-SC48 | 180~220 | 88 | 18~42 | 7.5 | 6698 | 2940 | 2300 | 5337 | |
