Sugar Gyratory Sifter

/in /by

Sugar Sifter

Our gyratory sifter equipment has been applied in sugar industry successfully.

As we know, the sugar powder is easy to block the mesh aperture during sifting process, especially when do the sugar fines removing work, the self-cleaning device could not avoid the mesh blocked problem if the sugar with moisture. So the people must stop the sifter equipment work and remove out the mesh to clean the mesh aperture by hand, if the mesh changing work is hard, it will waste too much time for production stop.

So we have one new model sifting equipment, we call it side doors access gyratory sifter,

Details as following

http://www.megayoungscreen.com/gyratory-sifter-equipment/gyratory-vibrating-screen/



The screener could change mesh from two side of the gyratory sifter box, and one layer mesh be divided into several little deck, so each deck weight become very light, one people could handle it, and for this sifter, also there are self-cleaning balls under the sifter mesh, and two people could finish the whole mesh work changing work within 10 minutes, please check following video link:

http://www.megayoungscreen.com/video/side-access-doors-type-gyratory-screener_compress-2/

For above video, you could find the mesh changing work is very easy for our side door access gyratory sifter, it is easy to cleaning the mesh if the sugar is too moisture, it become one easy work.

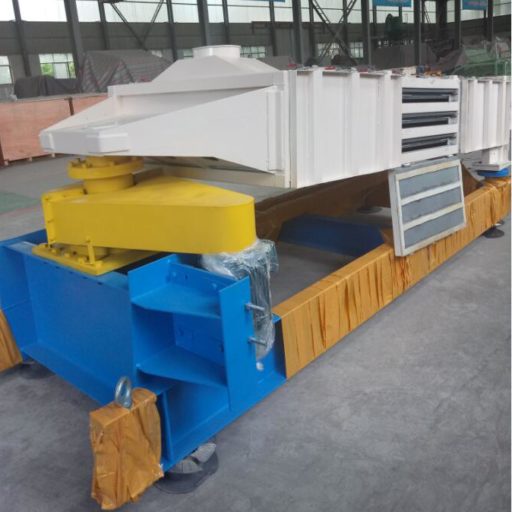

gyratory vibrating sifter

Rectangular Gyratory sifter and round Tumbler sifter comparison

/in /by

Rectangular Gyratory Sifter and round Tumbler Sifter comparison

Mega Young Screening technology have rectangular gyratory sifter, round gyratory vibrating sifter and round gyratory tumbler sifter, the three model gyratory sifter all do the the reciprocating-gyratory motion one level plane or almost horizontal plane.

But still there are one major difference between the rectangular gyratory sifter and round gyratory sifter as following about the material moving path distance

1.Round gyratory sifter feed material flow motion as following

round gyratory sifter feed

From above pictures, the inlet of round gyratory sifter is in the center of top cover, so the bulk material will be feed from the center of the sifter, and it also will fall down on the center of the sifter  mesh, and the sifter outlets on the edge of the sifter casing structure

The bulk material flow bed moving path on the sifter mesh surface as following

round gyratory sifter moving path

The material will flow toward the edge of the sifter casing from the sifter mesh center, it could not move the whole sifter mesh surface,so the material flow path distance only a little longer than the 1/2 of the sifter deck diameter, for example, the sifter equipment diameter is 2m, the material movement path distance may only 1.2m, it is much shorter than the deck circle diameter 2m, so the sifting path is shorter than the screener deck diameter when adopt round gyratory  sifter.

2.Rectangular gyratory sifter feed material flow motion path as following

gyratory sifter material feed

From above pictures, the rectangular gyratory sifter  inlet is on one end of the top cover, so the material will be feed from one end of the sifter casting, and discharged from another end of the sifter casing, the material flow will pass the whole sifer mesh surface.

gyratory sifter material flow

The material will flow toward the end of the outlet after feed into the gyratory sifter equipment inlet, the material movement path will be along the whole length, and the material will to the gyratory motion along with the screener box, so the fact material moving path distance will be much longer than the sifter casing length, for example, the side door access gyratory sifter area is 1.2m*1.9m, the material flow moving path distance will be much larger than 1.9m, it is even 2 times of 1.9m, and the stroke of the screener is 60mm-88mm, the moving speed is higher, that is why the same   side access door gyratory sifter mesh area is 3-6 times of same area of round gyratory screener, for round gyratory tumbler sifter, the material along could use the 1/2 of diameter of the screener mesh, but for the side access door gyratory sifter, it could use even 2 times length of the gyratory screener mesh length, and have much higher movement speed

Proper gyratory sifter model for sugar

/in /by

Proper gyratory sifter model for sugar

As we know, the sugar is easy to absorb the moisture from the air then became very sticky, during the process for grading, scalping or finds removing with vibrating screener equipment, the sugar is easy to adhere to the mesh wire then block the mesh aperture, so it stop the screener equipment running to cleaning the mesh, but the mesh changing time affect the production line stop time, the shorter mesh chaning time, the better, in our MHG model gyratory sifter equipment is one kind screener that is easy to change the mesh, it only need about two labors to change the whole mesh within 10 mins, and it is save, because the screener mesh could be changed from two side of the screener box, one little mesh just 2-3KGS weight, for details, please check the details about our MHG model gyratory vibrating screen.

Gyratory vibrating sifter which is easy to change and clean the mesh deck

/in /by

Separation equipment which is easy to change and clean the mesh deck

For vibration separation equipment for material screening, the bulk material is easy to block the mesh aperture or worn out the mesh if the bulk material is sticky or strong abrasiveness, so the labor need stop the separation equipment running, or need stop the whole production line, then move out the previous mesh for cleaning or changing one new, the mesh changing time is very important, if it too long, it will affect the whole production line and bring to much lost too company.
In order to solve the problem, the MHG model side door access gyratory screener is one good choice, only two people could finish the mesh changing work within 10 mins, and it is much safe. because one mesh deck only weight about 2–3KGS, for details, please check our MHG model gyratory vibrating sifter



gyratory vibrating sifter
